Metro Martin Place

North Tower - Edge Forms

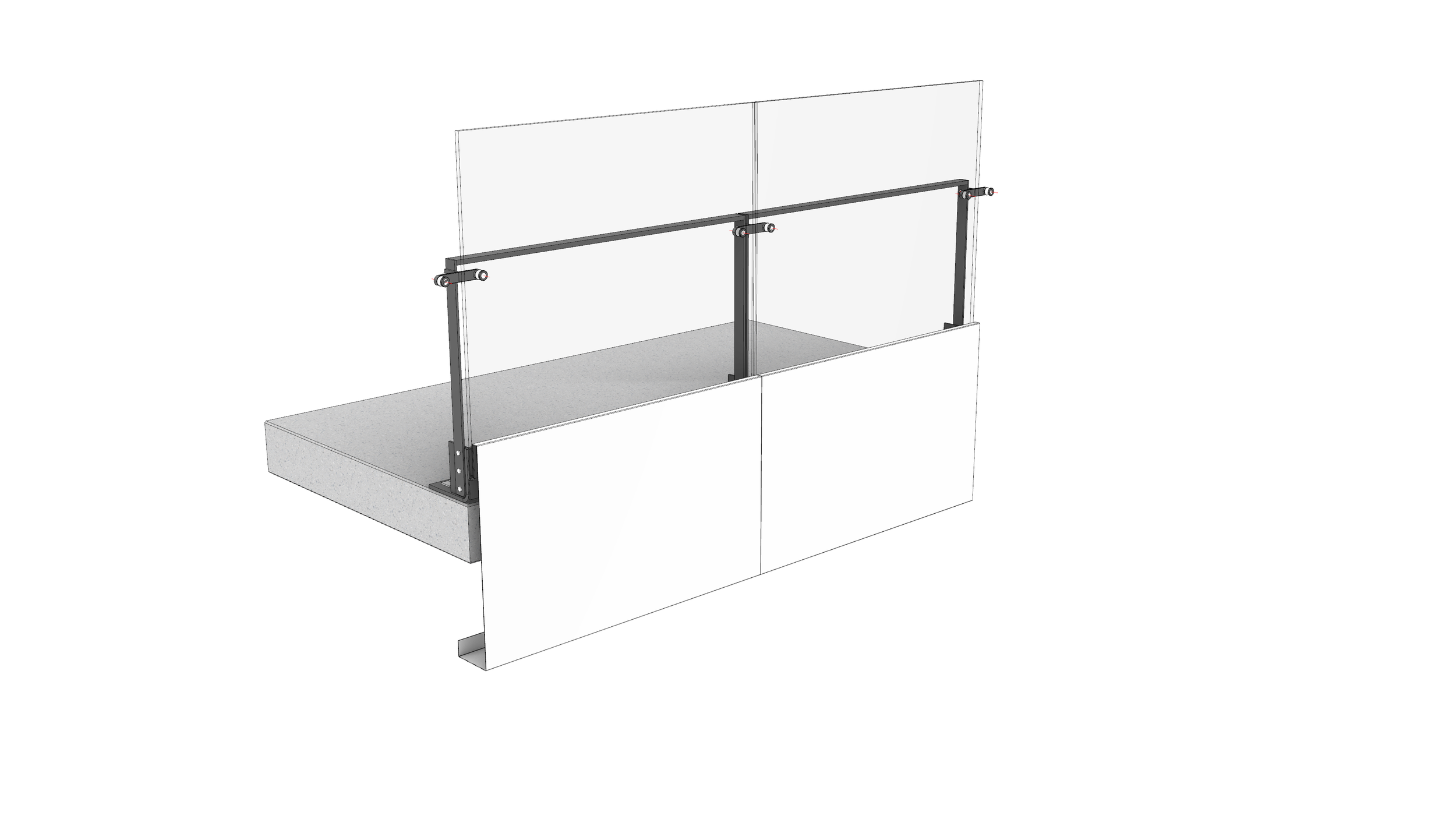

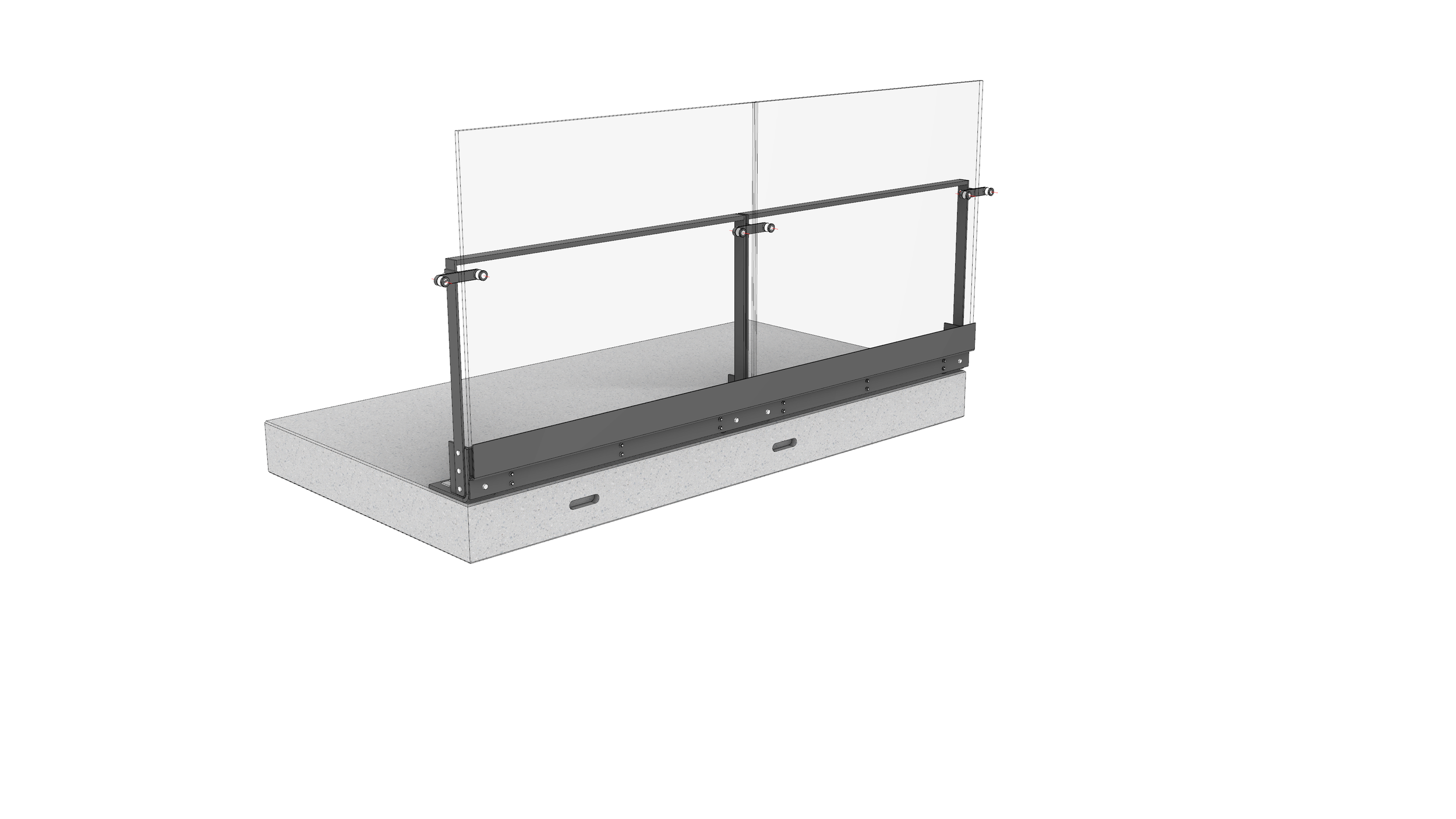

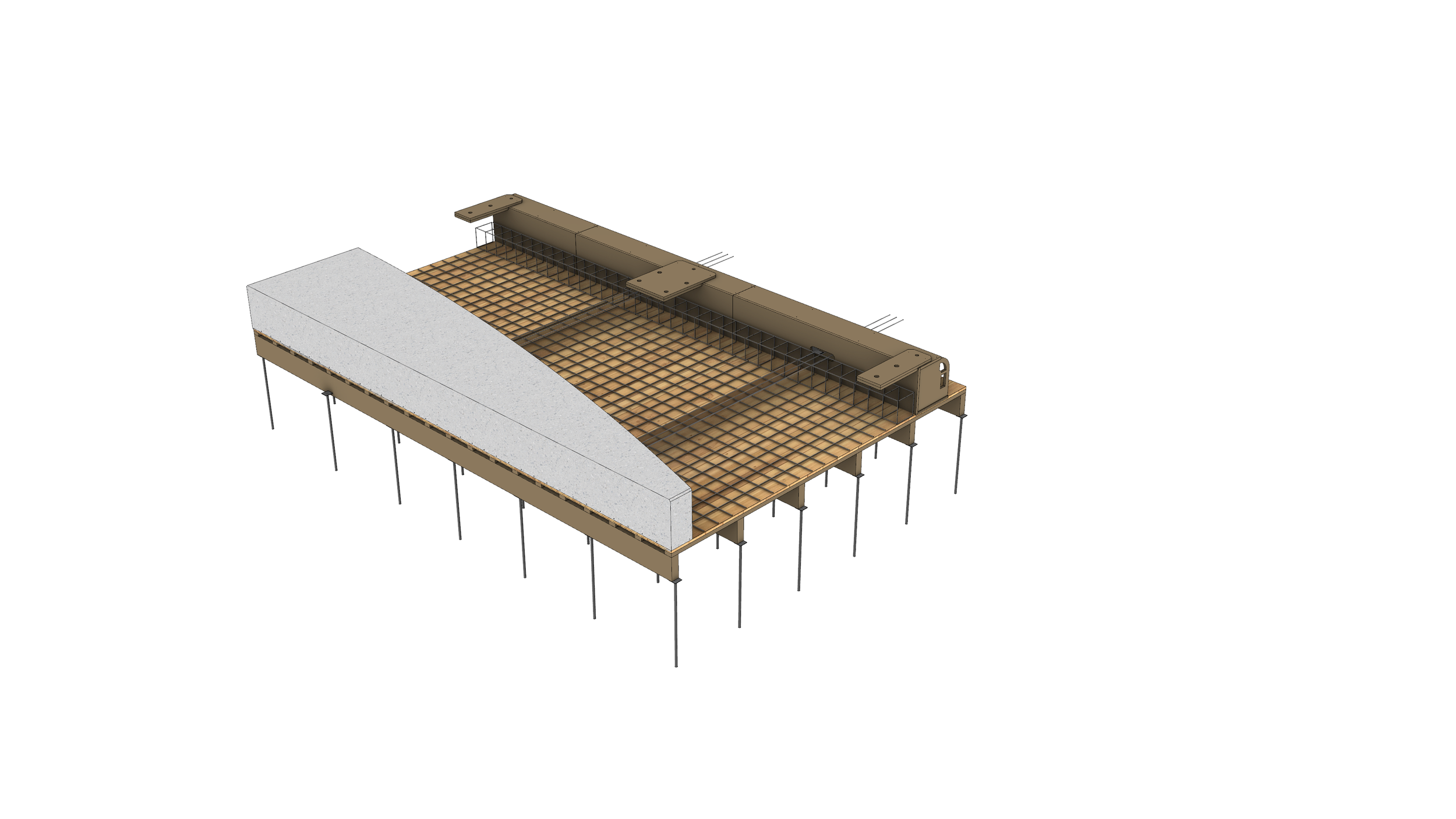

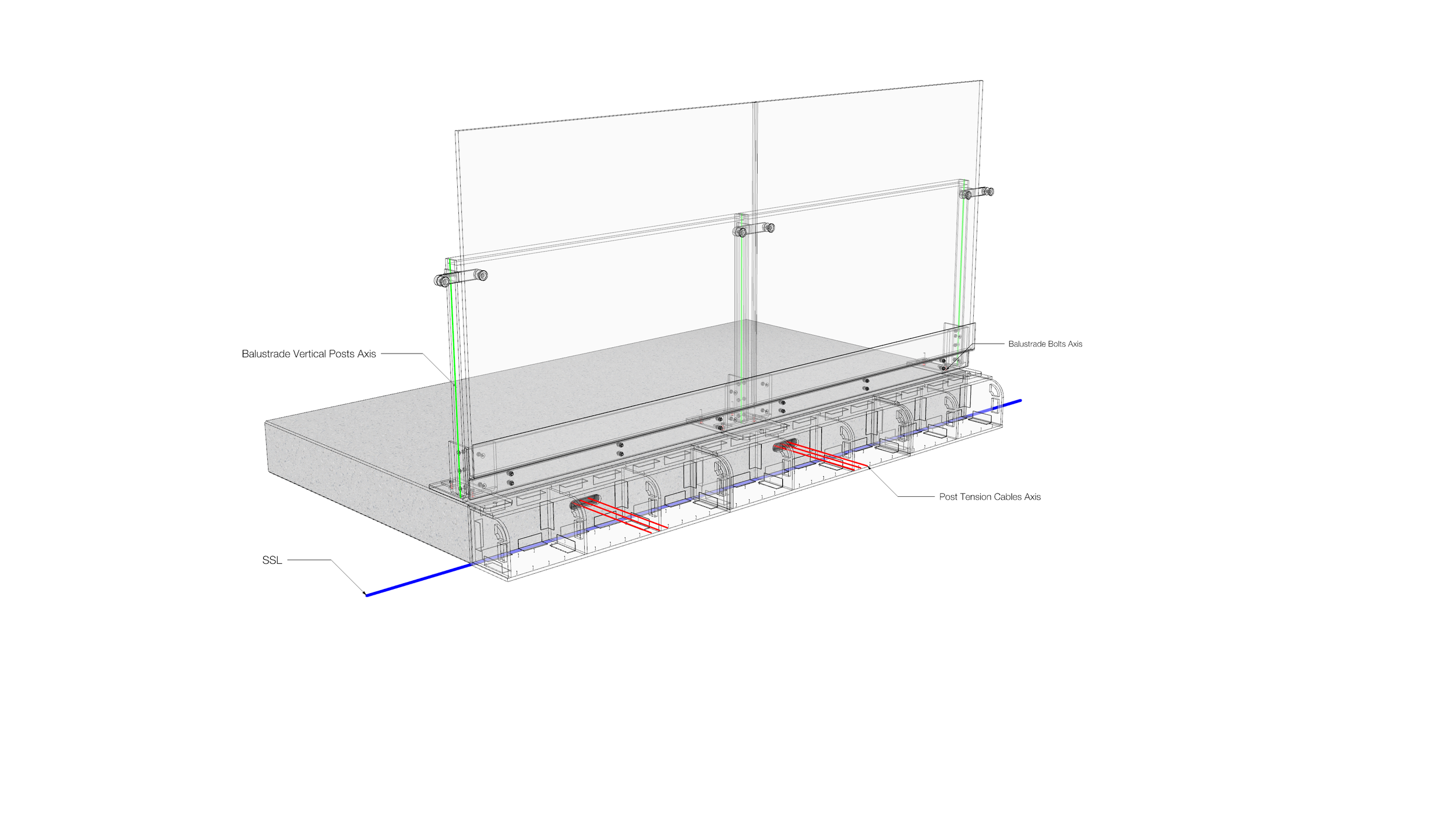

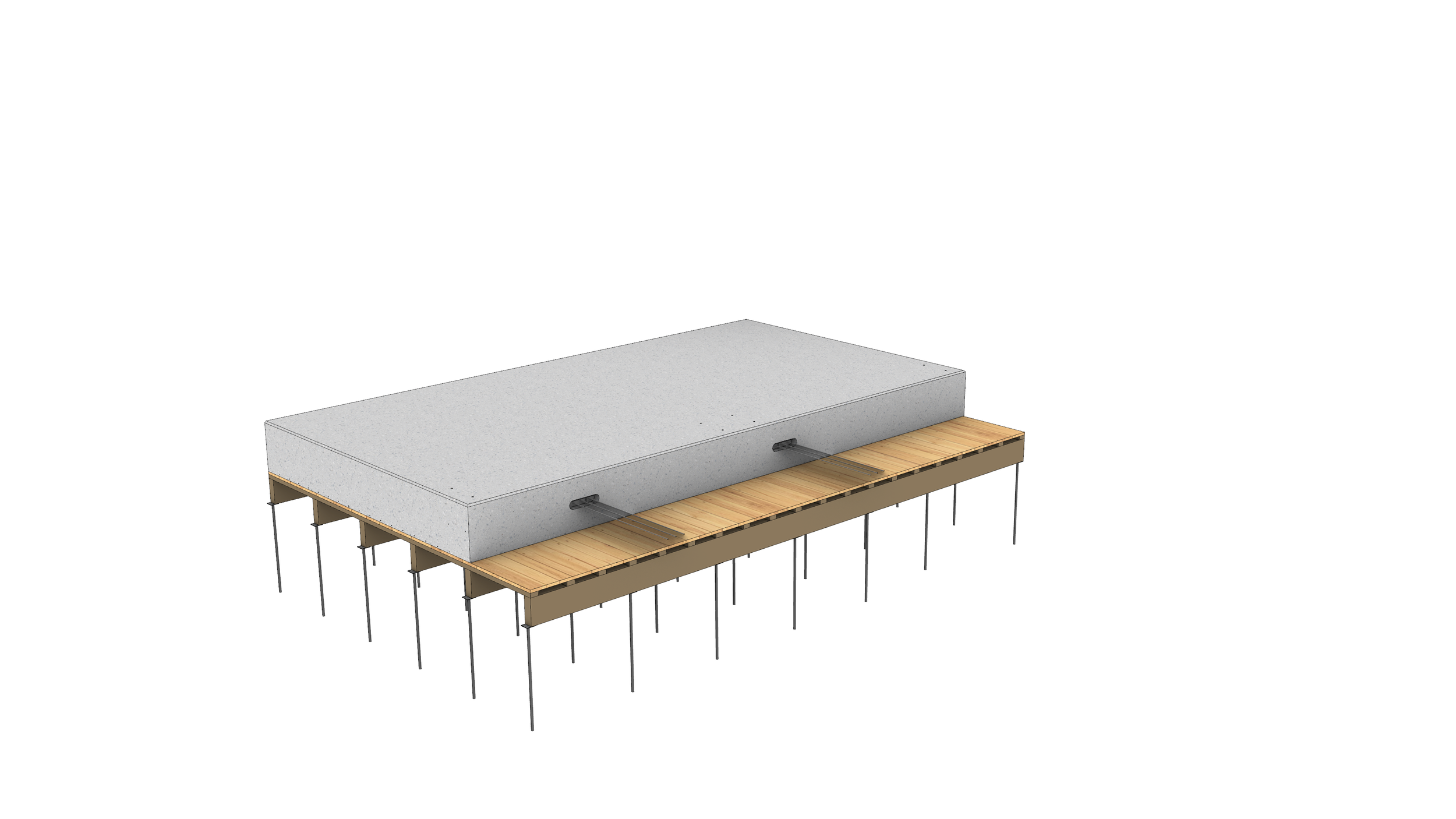

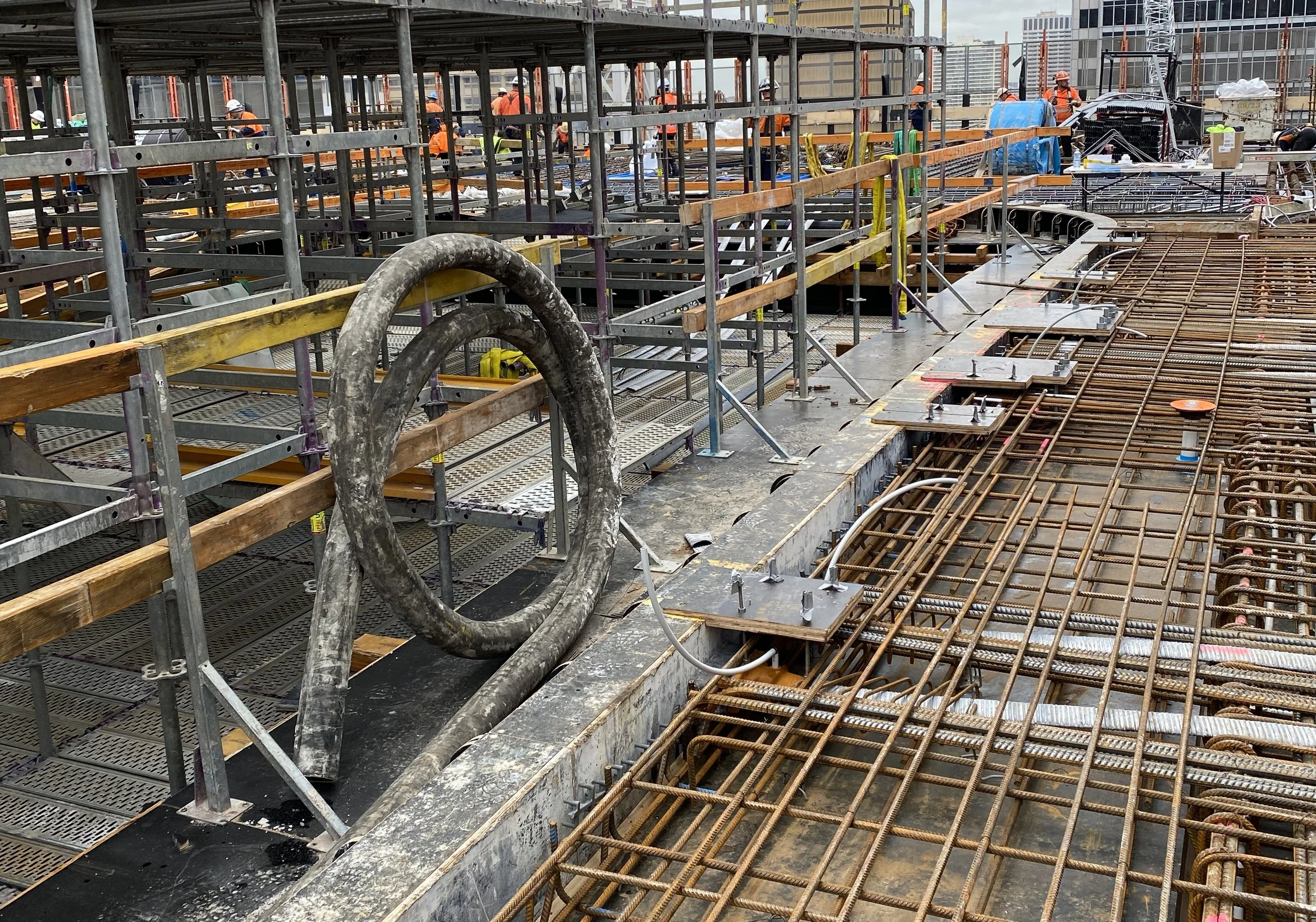

“The modular formwork allowed to precisely coordinate the manufacturing and installation of a multi constrained system consisting of balustrades, stairs and post tensioned concrete slabs across 27 levels of the North Tower.

The adaptive design of the edge form template enabled prefabrication, de-risk and a substantial time saved on site, while ensuring high performance, safety and reusability”.

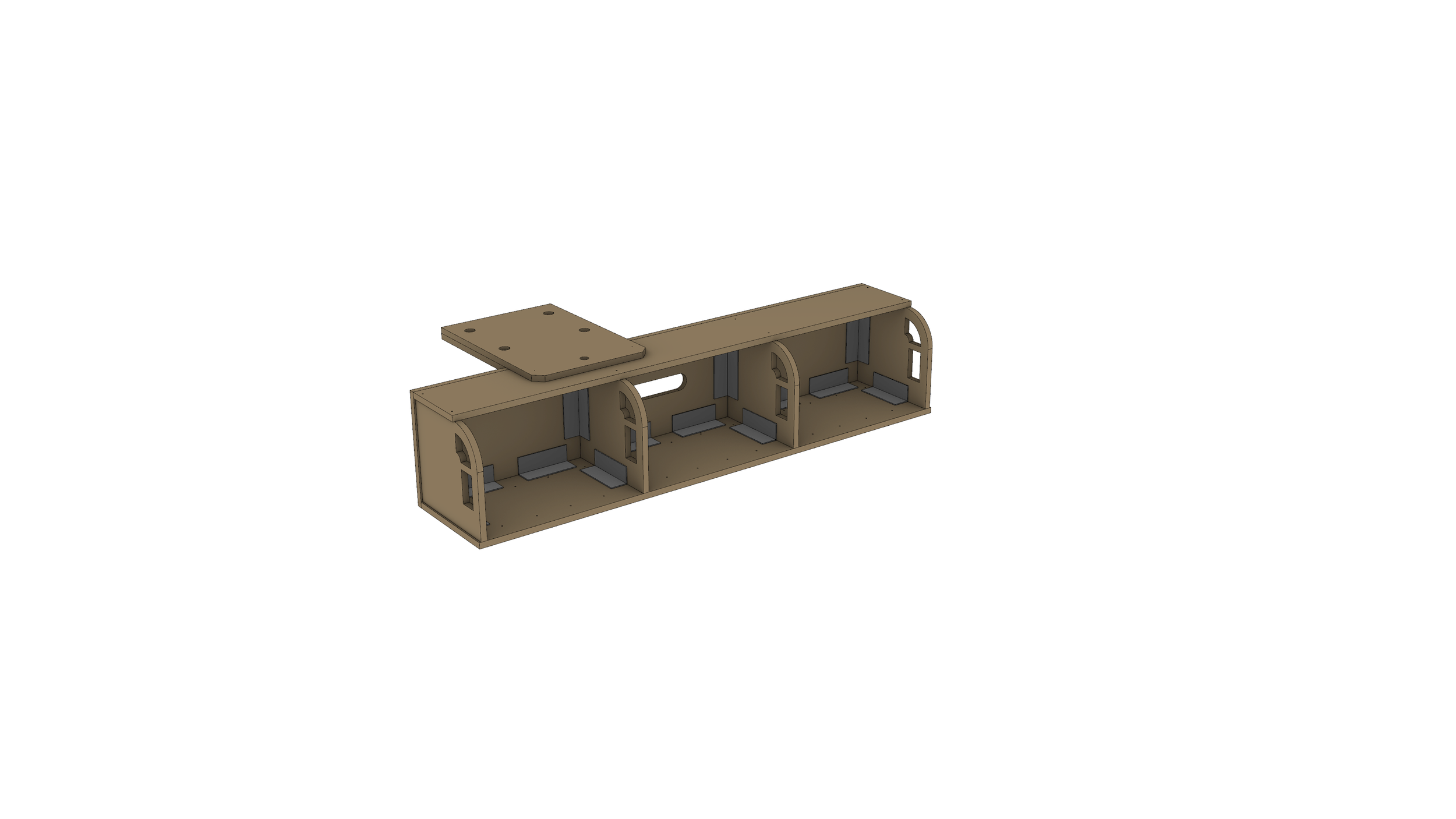

“The edge board module has been developed and integrated into a proprietary virtual model, which enabled the coordination with interfacing project scopes and the extraction of fabrication and assembly data to drive the production of shop drawings and CNC machine files.”
